Lay-Flat Book Printing
A lay-flat project is specified by how its pages open, not by the cover name.
- Mounted spreads or a specified flexible-hinge page system
- Printed mounted spreads
- Panoramic portfolio
Start with the intended use, finished size and quantity. The material and construction can follow.

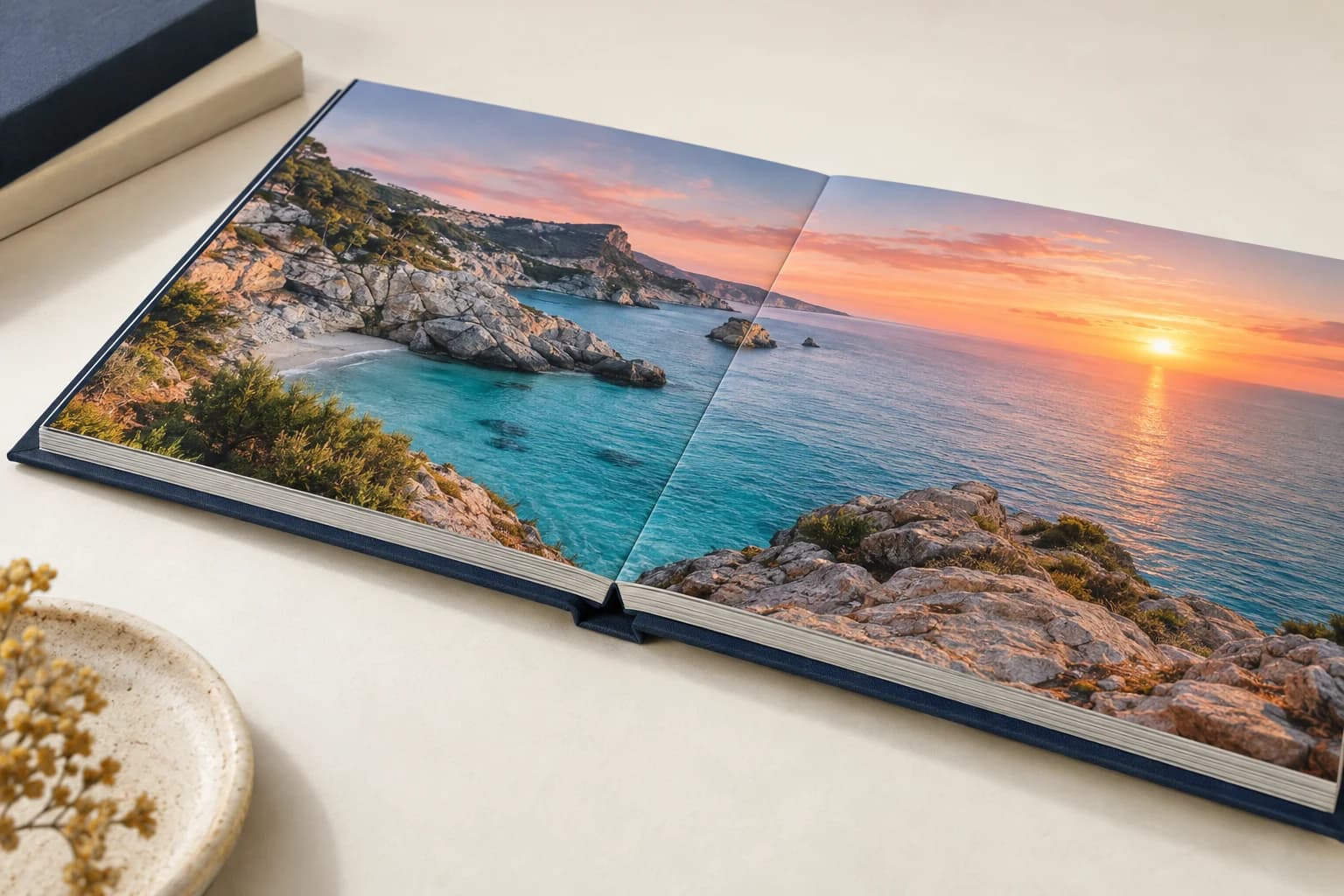

The product in use
An opening system built around the complete spread
Lay-flat describes an opening behavior supported by a particular page and hinge construction. Mounted spreads create thicker leaves; a flexible-hinge system can use another arrangement. The center seam, leaf count and image continuity distinguish the result from a conventional book that simply rests open.
What makes up the finished product?
- Lay-flat construction
- Flat opening describes behavior; mounted leaves and hinged sheets have different thickness and page counts.
- Printed mounted spreads
- Mounting gives the spread substantial thickness and a continuous image surface. The resulting page block is different from folded signatures.
- Cover and additions
- Do not label a conventional hardcover as seamless lay-flat solely because its sections are sewn.
Specifications and materials
Lay-Flat Book Printing specifications
Use these reference options to build the project brief. Dimensions are design examples; material availability, tooling and production timing depend on the confirmed specification.
| Parameter | Reference or option | Why it matters |
|---|---|---|
| Finished dimensions | 210 × 210 mm | A square design example suits panoramic spreads; the open spread is approximately twice the trim width. Design reference, not a factory limit. |
| Lay-flat construction | Mounted spreads or a specified flexible-hinge page system | Flat opening describes behavior; mounted leaves and hinged sheets have different thickness and page counts. |
| Interior page count | Final reading-order PDF, including intentional blanks; covers stated separately | Page count, actual paper caliper and binding determine the page block and cover spine. |
| Binding and cover | Mounted spreads or specified flexible-hinge page system | A bound sample checks page turning, the gutter, the spine and any inserted sections. |
| Material construction | Printed mounted spreads or Flexible-hinge page system | Compare the actual grade and construction. Inspect the central hinge, leaf stiffness and finished block thickness. |
| Material selection | Printed sheets mounted back-to-back | Mounting gives the spread substantial thickness and a continuous image surface. The resulting page block is different from folded signatures. Inspect the central hinge, leaf stiffness and finished block thickness. |
| Format and order unit | complete books per language, artwork version and binding | List components and versions separately so quantities refer to the same finished unit. |
| Finishing choice | Do not label a conventional hardcover as seamless lay-flat solely because its sections are sewn. | Approve the proposed material and process combination on an appropriate sample. |
Compare the material and its effect.
Choose the surface and construction for the way the finished product will be used. The options below are selection references, not a guaranteed inventory list.
Printed mounted spreads
Printed sheets mounted back-to-back
Mounting gives the spread substantial thickness and a continuous image surface. The resulting page block is different from folded signatures.
Sample check: Inspect the central hinge, leaf stiffness and finished block thickness.
Flexible-hinge page system
Individually specified leaves and hinge construction
A hinge can help the page open without using the same mounting construction. Opening behavior depends on the complete system.
Sample check: Inspect a full spread and identify where the image crosses any seam.
Selected sample focus — Printed mounted spreads: Inspect the central hinge, leaf stiffness and finished block thickness.
Format & usable space

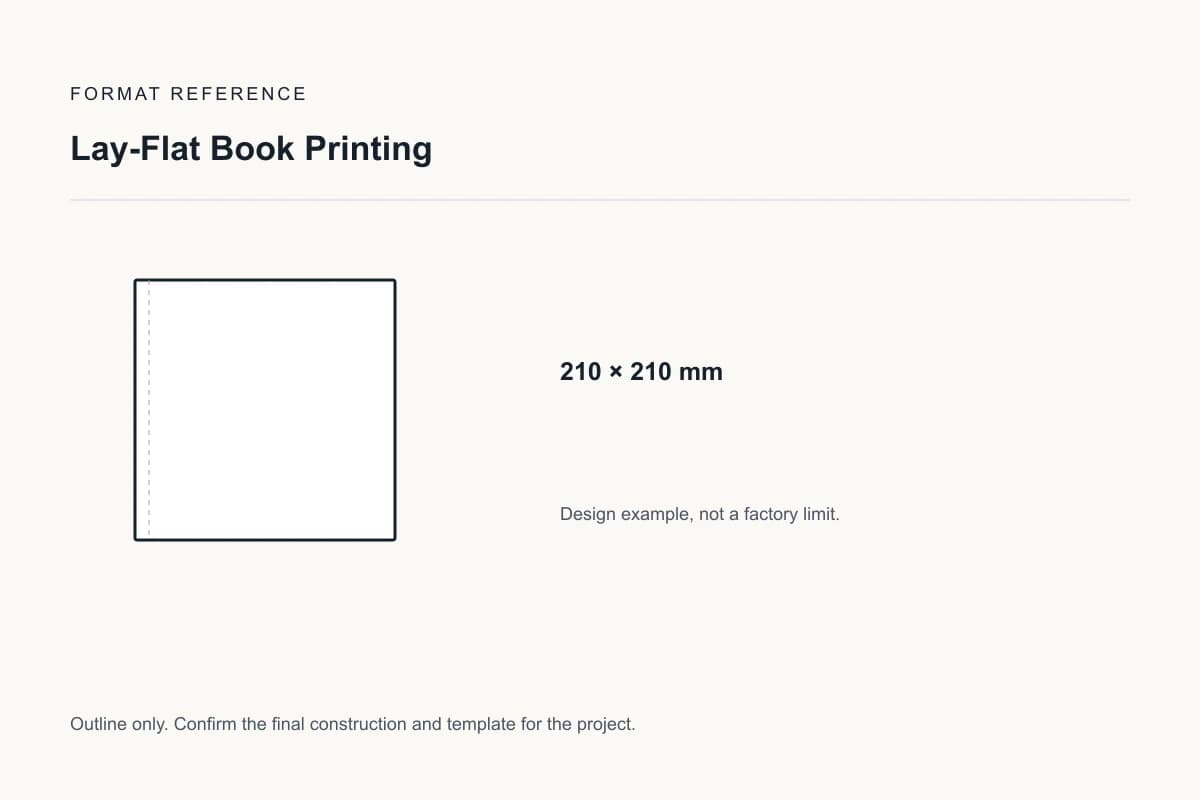

Lay-Flat Spread Size & Page Construction
210 × 210 mm
A square design example suits panoramic spreads; the open spread is approximately twice the trim width.
This is a design reference, not a required size or a manufacturing limit.
Lay-flat construction
Mounted spreads or a specified flexible-hinge page system
Flat opening describes behavior; mounted leaves and hinged sheets have different thickness and page counts.
See the trim proportions.
These are publishing references, not required sizes. Compare the usable page shape before adapting an existing layout.
Selected: Square design example. Proportions only; not actual size.
Trim dimensions describe the cut page. Artwork bleed, cover overhang, tabs and modules are separate allowances.
View the original format reference
Surface finish options
Printed covers and jackets
Choose the finish for the printed cover or jacket, not automatically for the interior. Check color, rub marks, hinges and compatibility with the cover stock. Cloth and synthetic wraps need a separate material trial.
Matte lamination View effect & artwork guidance
Gloss lamination View effect & artwork guidance
Gold foil stamping View effect & artwork guidance
Spot UV View effect & artwork guidance
Illustrative finish samples, not photographs of this product. Final suitability follows the confirmed stock, construction and approved sample.
Compare all surface finishes
Details that change the finished product
Inspect the paper, print and bound opening
Specify the construction behind the flat opening
Choose the construction before preparing spreads. A mounted photographic opening uses a different page build from a conventional sewn text block.
Lay-flat construction
Flat opening describes behavior; mounted leaves and hinged sheets have different thickness and page counts. A bound sample checks page turning, the gutter, the spine and any inserted sections.
Surface and finishing compatibility
Do not label a conventional hardcover as seamless lay-flat solely because its sections are sewn. Mounting gives the spread substantial thickness and a continuous image surface. The resulting page block is different from folded signatures. Inspect the central hinge, leaf stiffness and finished block thickness.
Panoramic Portfolios & Working References
Panoramic portfolio
Mounted spreads can keep a continuous image visible; define thickness and page counting for that assembly.
Working reference
A different hinge or exposed binding may better suit handling; flat opening alone does not identify the construction.
Solve the risk before production
Check Image Continuity Across the Central Hinge
The critical finished-product check
A panorama can show a visible interruption even if the book rests open. Review image continuity, the central hinge and actual opening behavior on the proposed construction.
Thick leaves change page planning
Why it happens: A mounted page system is treated like conventional thin-paper signatures.
Fix and check: Plan leaf count, hinge placement and full block thickness for the selected page system.
When to choose another format
Lay-Flat Books, Photo Books & Sewn Hardcovers
| Alternative | Use and trade-off |
|---|---|
| Photo Book Printing | An image-led book can use several binding systems; identify the exact opening construction. |
| Hardcover Book Printing | A sewn casebound book has a different central gutter and leaf thickness from mounted spreads. |
Sample and approval
Evaluate the Proposed Lay-Flat Opening
Free samples are available, with preparation completed within 15 days. Confirm the sample scope; courier arrangements and transit time are separate.
Structural sample
Checks dimensions, fit and assembly using unprinted or representative materials. It does not establish final color.
Printed proof
Checks text, image reproduction and artwork on the agreed proof medium. It may not reproduce final assembly or every finish.
Complete finished sample
A bound sample checks page turning, the gutter, the spine and any inserted sections.
From brief to delivery
Order Details for Lay-Flat Book Printing
Build and approve the order in five steps
Send the project brief
Send required opening behavior, panorama count, page construction and acceptable center interruption. Include finished dimensions, quantity by version, destination and required arrival date. If a configuration is undecided, describe the intended use.
Compare the quoted configuration
Compare the same quantity basis: complete books per language, artwork version and binding. Check that the quote identifies materials, finishing, included components, sample scope, packing and freight.
Approve the appropriate sample
A bound sample checks page turning, the gutter, the spine and any inserted sections. A print proof checks artwork and color; a complete finished sample also checks assembly. Record what the selected sample does and does not reproduce.
Confirm files and release production
Approve the final artwork revision and the lay-flat construction specification. Record the agreed quantity, payment conditions, packing and production schedule in the order.
Confirm packing and dispatch
State books per carton, edition labels and any slipcases or individual wrapping. Confirm production completion and transit as separate dates, using the delivery destination and required arrival date.
- Supply the complete reading-order interior PDF, including intentional blank pages. Supply a separate cover file built from the approved spine, hinge or punched-edge template. Case-wrap turn-ins, hinge areas and binding clearance are separate from trim bleed; keep essential content outside all of them. Supply finish masks as named separations.
- Extend edge-to-edge trim artwork by 3 mm unless the approved template specifies a different bleed. Use approximately 300 effective ppi for continuous-tone images at their placed size; keep fine linework as vectors where possible.
Project questions
Planning Lay-Flat Book Printing
How should pages be counted for a mounted-spread album?
Confirm the selected construction’s page, leaf and spread definitions before quoting. Supply a numbered spread plan and identify endpapers separately. Do not convert a conventional paperback page count into an album specification without checking the assembly.
How should I specify quantities and versions?
Count complete books per language, artwork version and binding. State required opening behavior, panorama count, page construction and acceptable center interruption; components, language versions and different structures must be listed separately.
What determines the minimum quantity and delivery schedule?
The selected stock, construction, finishing, version count and sample scope determine production planning. Request quantity breaks for the same configuration and an arrival-date plan that separates sampling, manufacturing and transit. No minimum or lead time is implied by the design examples above.
Specify the finished product.
Send required opening behavior, panorama count, page construction and acceptable center interruption. Include finished dimensions, quantity by version, destination and required arrival date.
